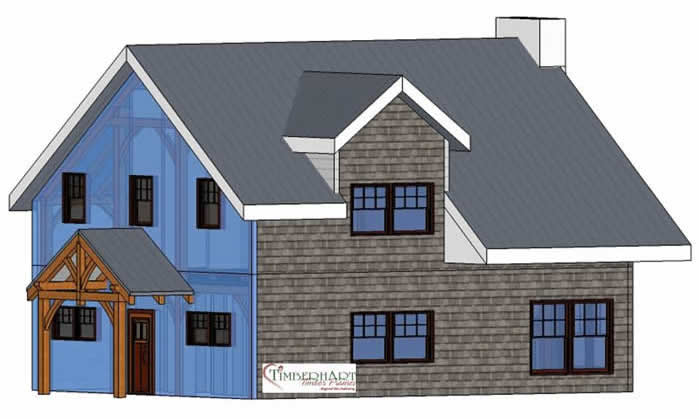

3D Model of the Timber Frame with Roof and WallsBeautiful Spruce Timber Frame Cottage with a cedar entry way

Near Baddeck, Nova Scotia

The design started with a site visit & inspection of the spruce timbers (from the client's lot) that had been stored in a barn since Hurricane Juan. The site is surrounded by trees with a stunning view of the water; the Great Room and wrap around deck face the water.

Size: Approx. 30' Wide x 36' Long, approx. 1080sq feet

2 story, 2 Bedrooms on the second floor, 2 Full bathrooms with a study or third bedroom on the 1st floor.

Great Room open above with cathedral ceiling. Open Kitchen.

Below: The site over looking the water. Right & Bottom: The foundation.

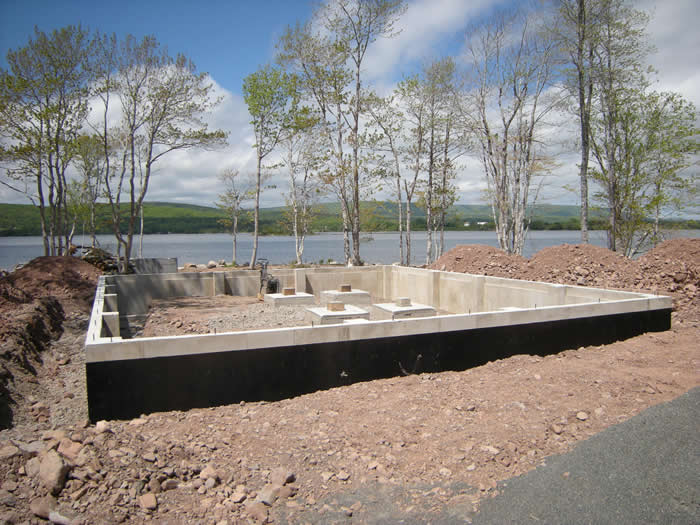

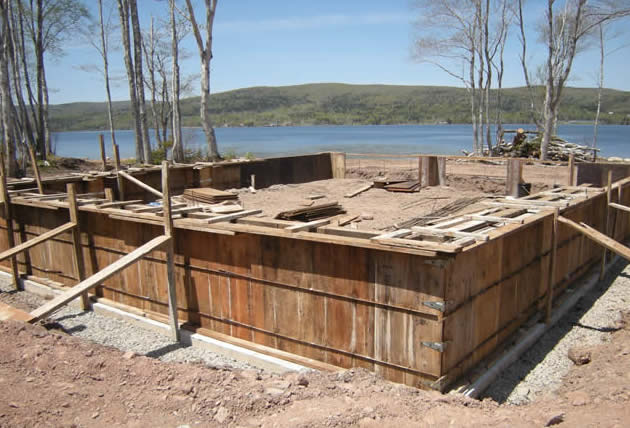

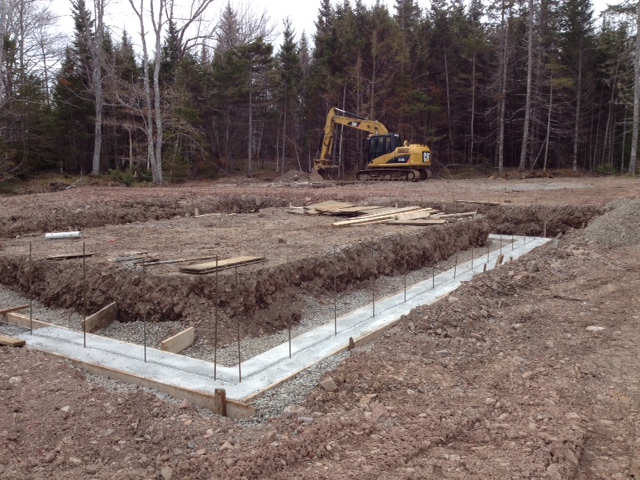

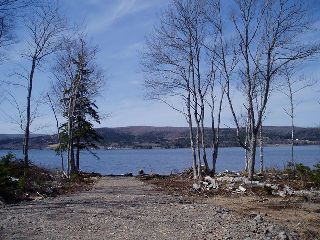

Beautiful site for the Spruce Timber Frame Foundation pouring for the Timber Frame Different angle of the timber frame foundation Getting ready for the install of the timber frame



The Cedar Timber Frame Entry

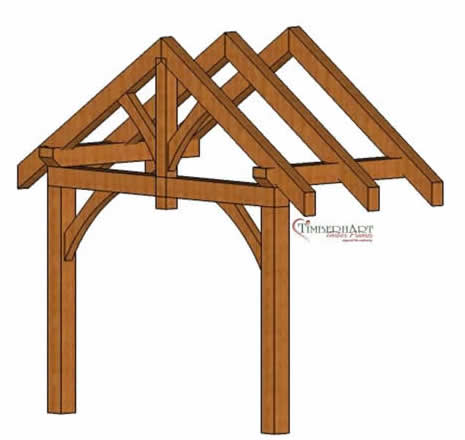

A King post with wind struts was chosen for the Timber Frame Exterior (8'x8' posts) 3D Model of the Timber Frame Entry way King post with wind strut Cedar Timber Frame Entry Way

3D Models

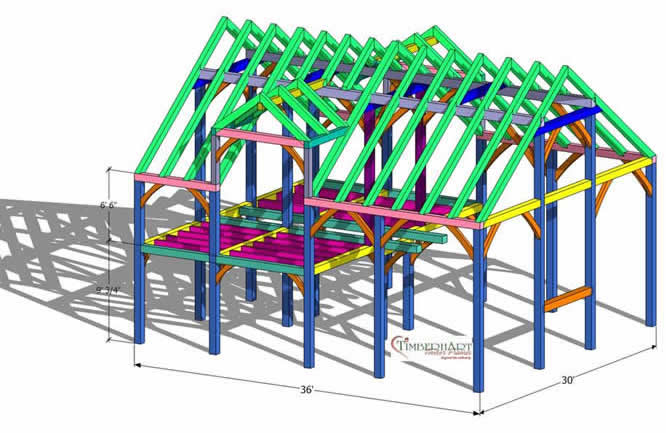

3D Model of the Timber Frame with measurements

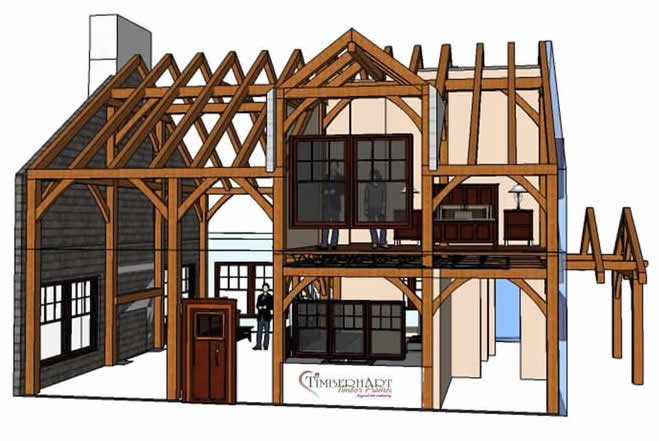

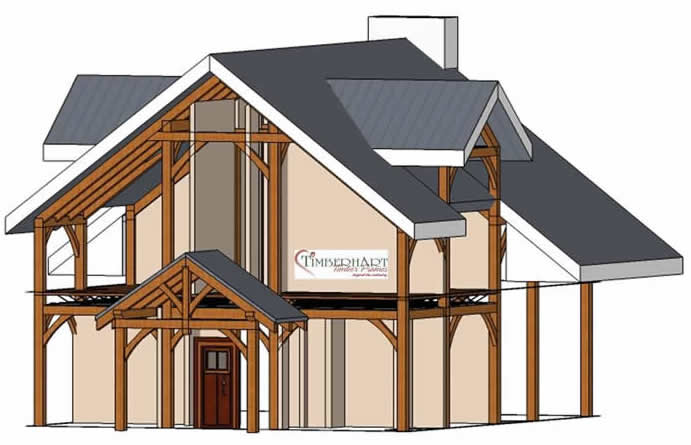

3D Model of the Timber Frame 3D Model with walls removed showing Timber Frame

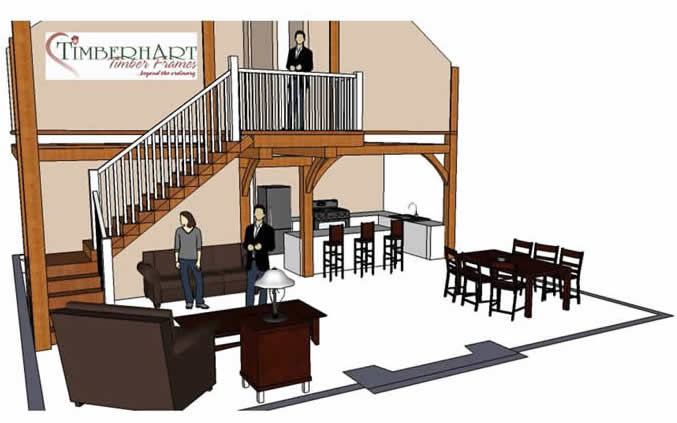

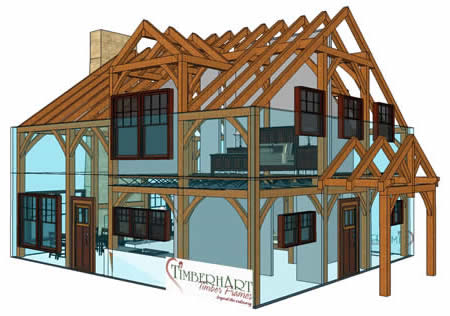

3D Model of the Timber Frame Stairs Timberhart Timber Frame 31x37 ISO_Entry

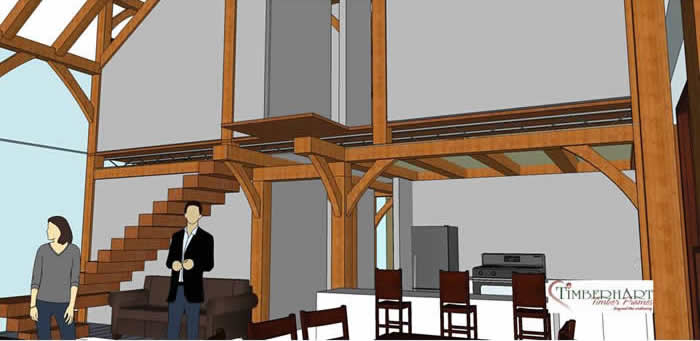

Timber Frame 3D looking at the Kitchen



In the shop

Timber Frames Braces, oiled; Dormer Collar-Tie; Timber Frame Post, Timber Frame Connecting Girt, Timber Frame Top Plate

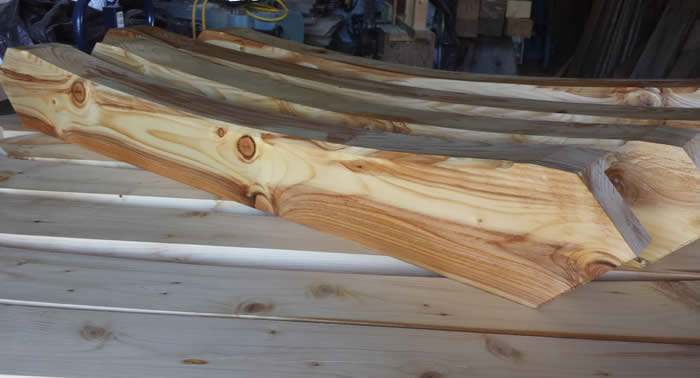

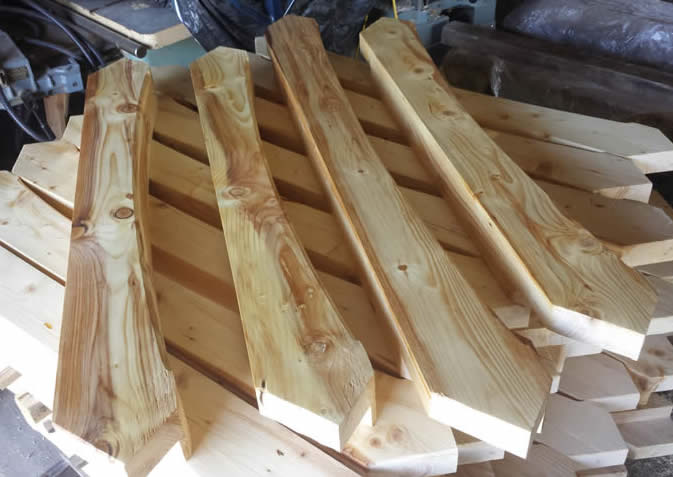

Timber Frame Braces in the shop Oiled Timber Frame Braces Oiled in the shop

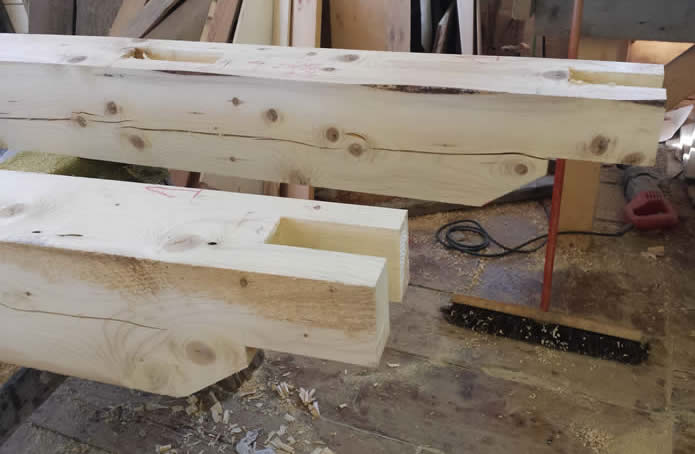

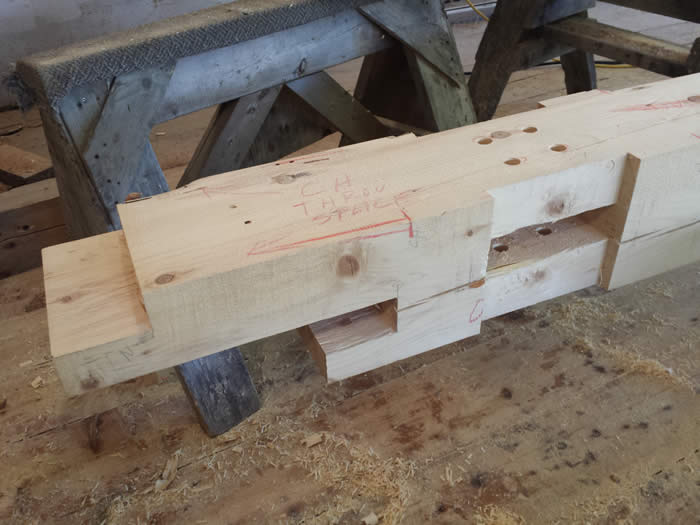

Timber Frame Dormer Collar ties Timber Frame Post

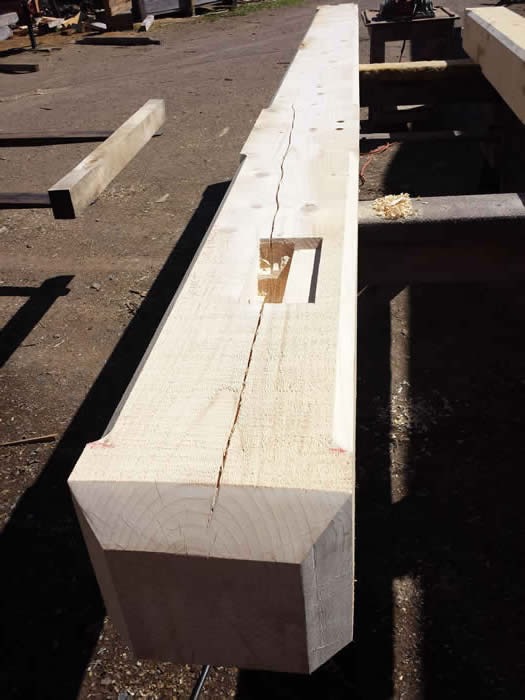

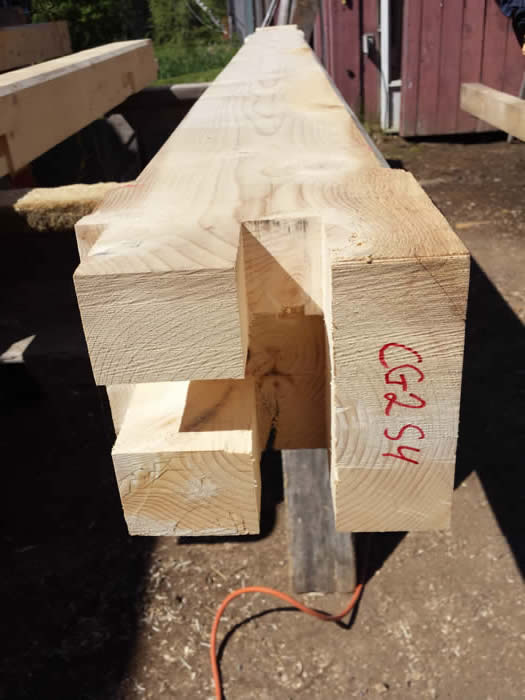

Connecting Girt for Section 4 Timber Frame Top Plate

Prefitting in the shop

Collar-Tie & Post; Dan drilling holes for the pegs

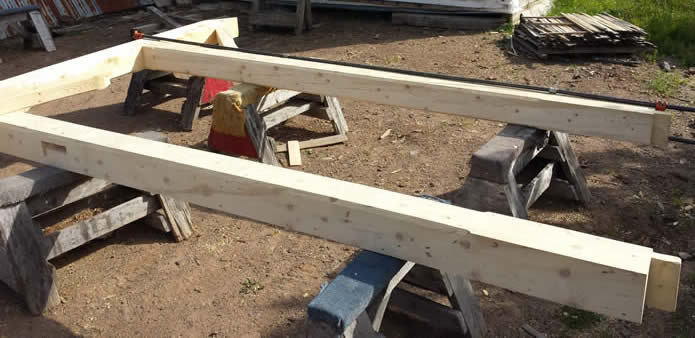

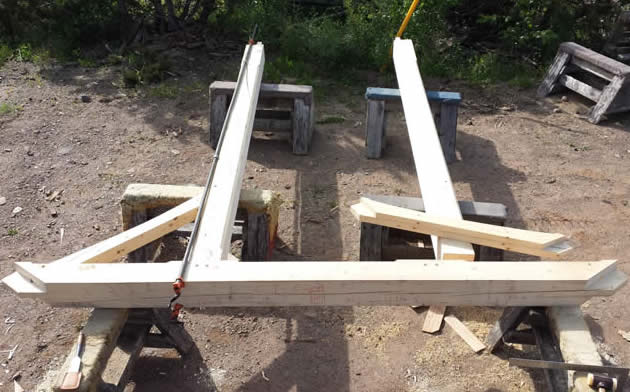

Prefit of Collar tie and post Timber Frame Collar Tie and Post Prefit

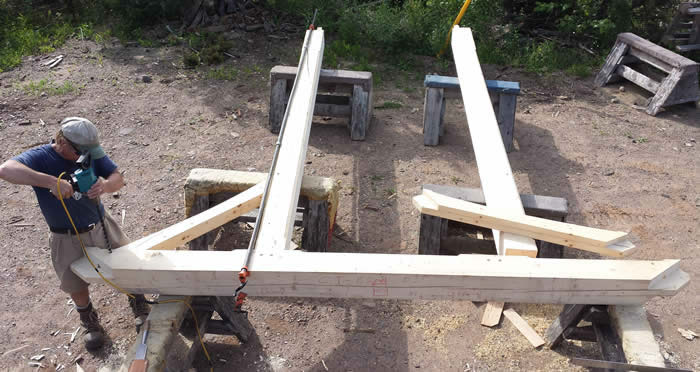

Dan drilling holes for the prefit of the Collar Tie and post



The Install of the Timber Frame & during construction

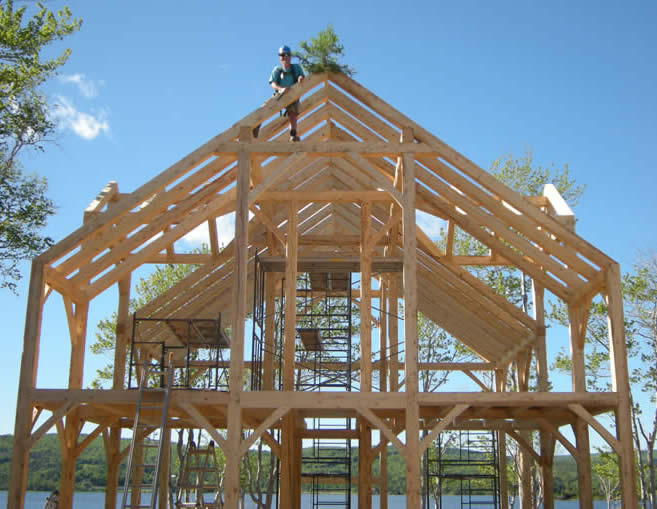

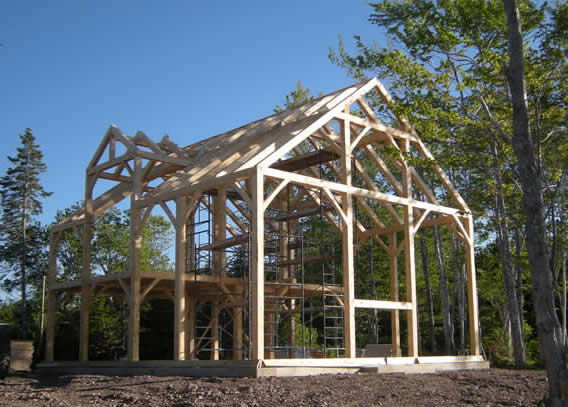

Install of the Spruce Timber Frame Completed Raising of the Spruce Timber Frame

Look at that view!!!

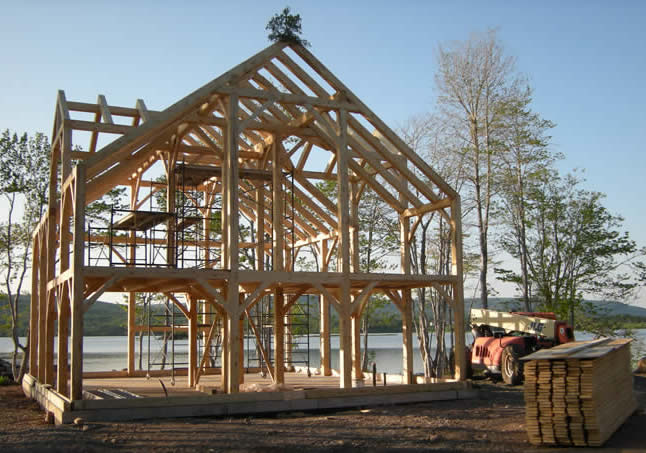

Spruce Timber Frame Completely installed

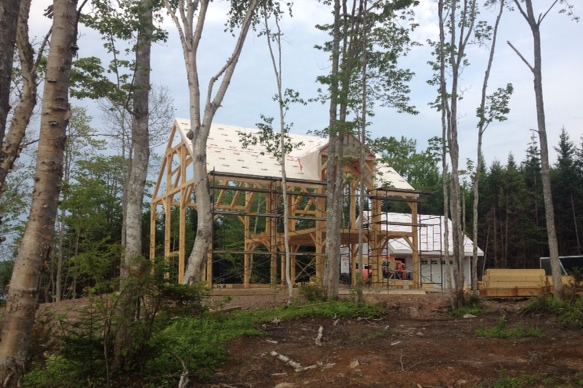

Different view of the completed install of the Spruce Timber Frame

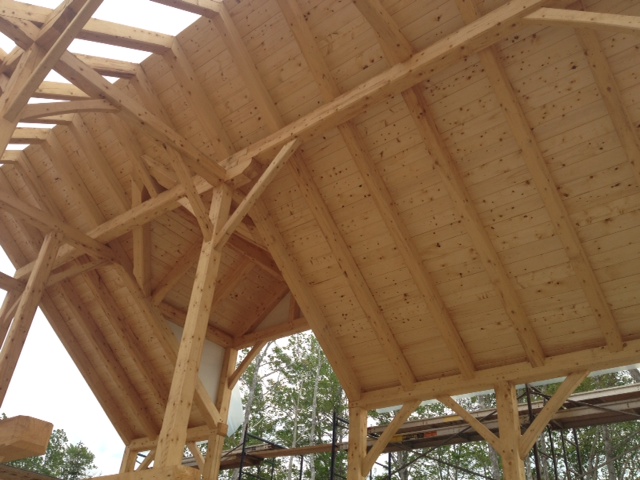

Roof is going on the Spruce Timber Frame

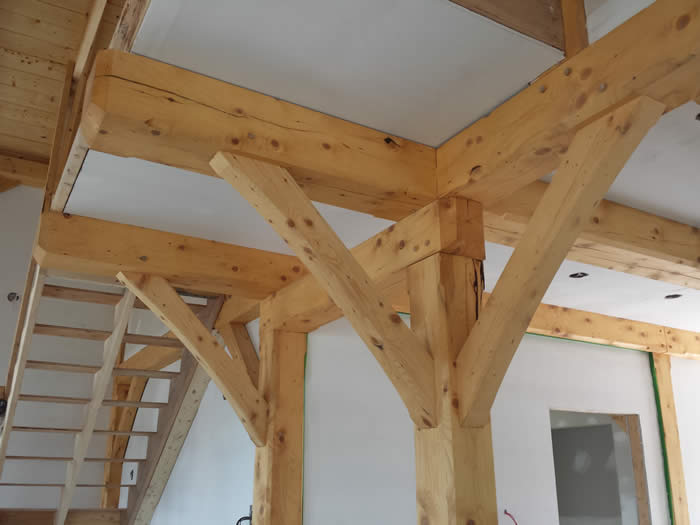

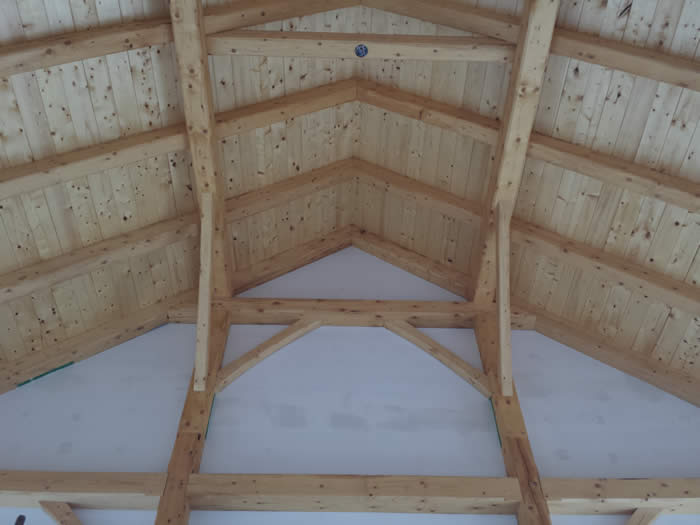

Install of the Spruce Ceiling Trusses The Install of the Spruce Timber Frame

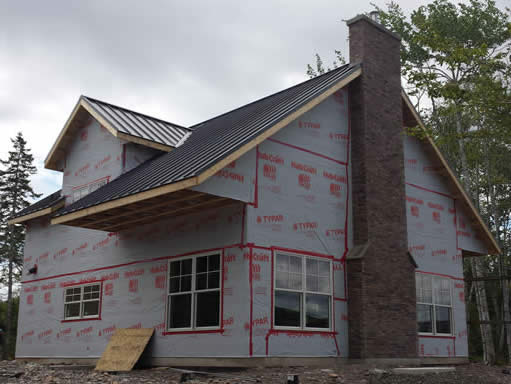

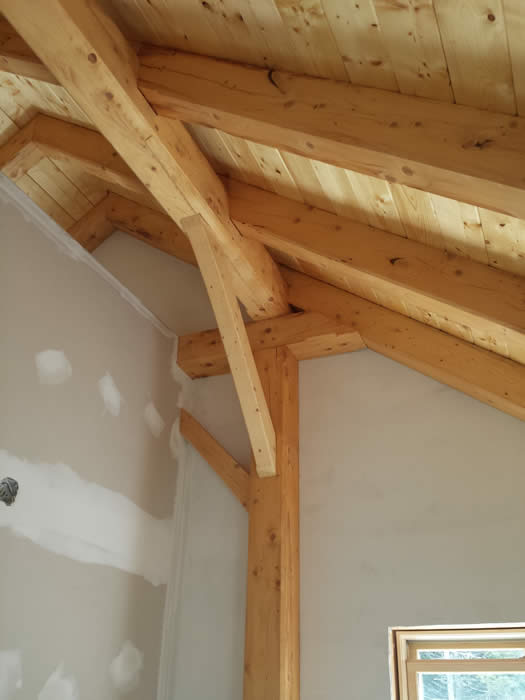

Install of the Spruce Post with a brace Spruce Timber Frame outside during construction

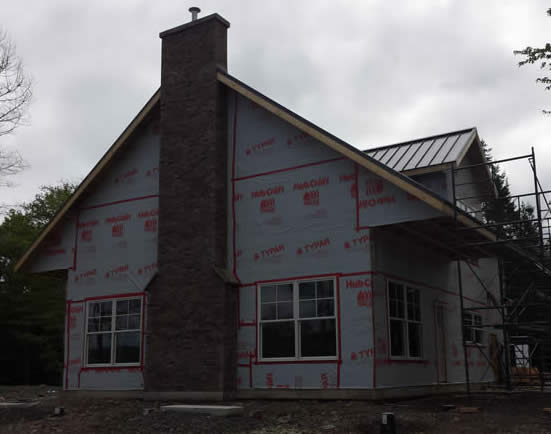

The outside of the Spruce Timber Frame during construction



The Finished Spruce Timber Frame

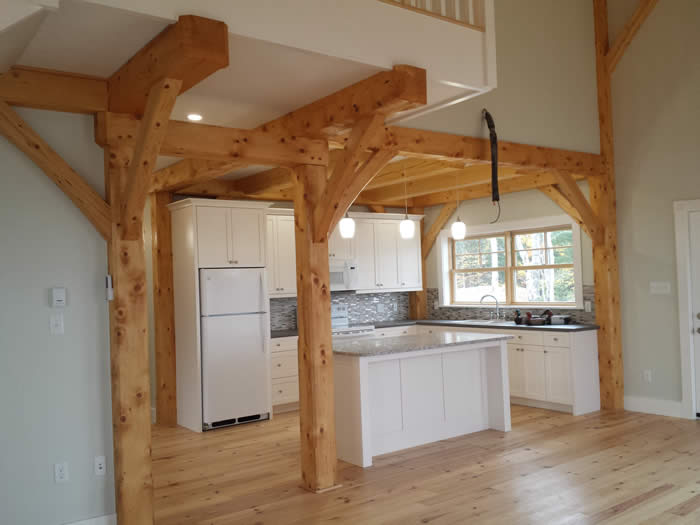

View of the Kitchen in the Spruce Timber Frame Spruce Timber Frame Kitchen

Spruce Timber Frame Living Room

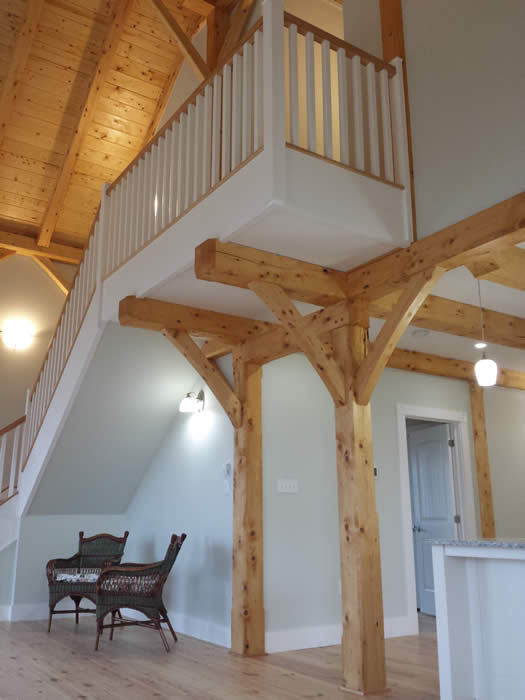

Spruce Timber Frame Posts Spruce Timber Frame Cathedral Ceiling

A beautiful view!

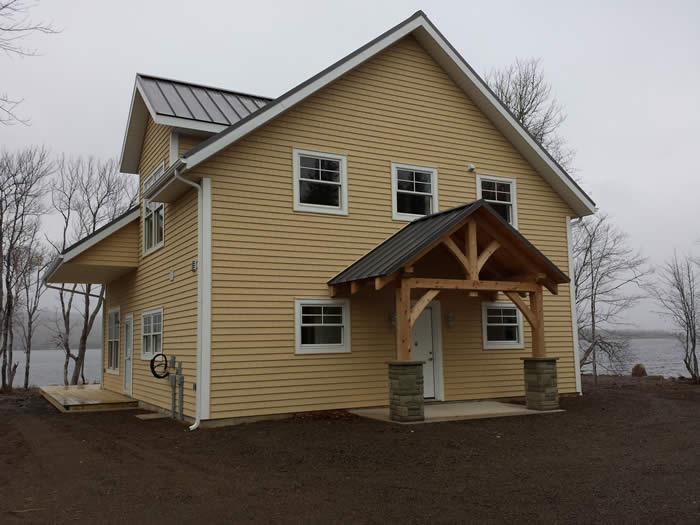

Completed Spruce Timber Frame with Cedar Timber Frame Entry
