Oak Timber frame music room addition

A beautiful place to celebrate music surrounded by Oak Timbers

Oak Timbe Frame Music room Addition

A Timber Frame addition to an existing home provided a room for the enjoyment of music. There were a number of parameters to consider; height of existing structure, acoustic performace, view planes, driveway access and control of snow or rain. In forming the design multiple uses of the space were considered. The transitional breezeway was designed to connect the two area, forming the main entrance to the home (instead of through the kitchen), as well as a sunroom sitting area. Aesthetic appeal of the building from the outside was kept in mind; a piece of the existing siding was taken for color analysis and matching. The window size, style and locations were chosen for both their exterior balance as well as the views they created from the inside.

Square footage: 780

3D Models of the Oak Timber Frame Music Room

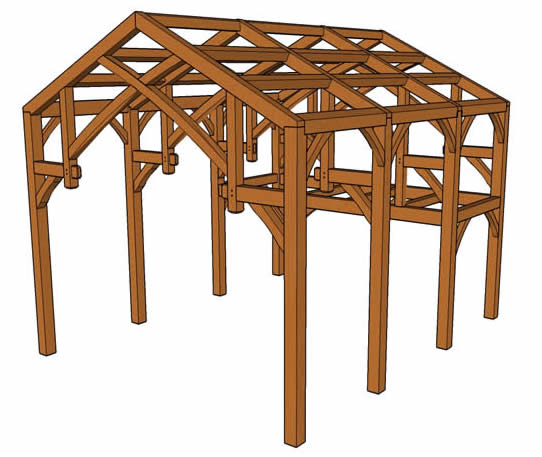

Oak Timber Frame Music Room From outside 3D Music Room OakTimber Frame Music 3D  Model Looking Up

The Install of the Oak Timber Frame Addition

Crane at the job site to unload the oak timber frame Oak Timber frame section ready to be hoisted by the crane

Install of the Oak Timber Frame additionCrane lifting a bent section of the timber frame to be installed













The Stairs, Elm Handrails & Spindles

Music Room Install of Elm handrail and spindles Music Room_Oak Timbers

Oak Timber Frame Music Room_Stairs Music Room Elm spindle Oak Timber Frame Music Room Stairs Timber Frame Stairs in 3D

Trusses & Loft

The Oak Timber Frame freatures a modified hammer beam style created with scissor trusses, thus forming a cozier space while maintaining the soaring ceiling. The sitting loft, while creating additional space, gives the opportunity of experiencing the cathedral area. A high attention to detail was selected and is apparent in the window trim, craftsman - style elm stairs and handcrafted elm doors. The Timber Frame structure was raised in one day. Two days later the building was weather tight with pre-built roof and walls.

Oak Timber frame Music Room Trusses Music Timber Frame Trusses Room view of the lof

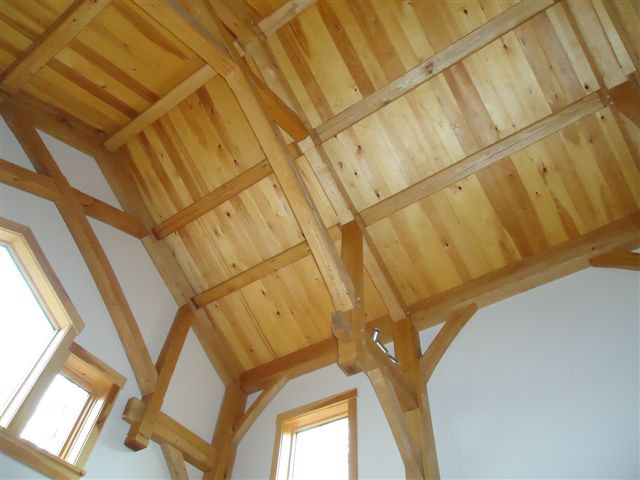

Oak Music Room view of the trusses in the ceiling Oak Timber Frame Music Room
